COMBOS

COMBO FUSION KN-40-540-1800-FUS

This all-in-one motor has a built-in ESC and the size of the assembly is for a 550 size motor. This set has an intelligent controller for managing the torque and the speed of your scale which remain constant regardless of the variations in the terrain. Motor operation is extremely smooth

This engine is undoubtedly the best possible engine for your scale.It allows to have less cable in its chassis. It is easy to install and extremely efficient. It fits perfectly in the CRX or in the TRX4 as well as on most scales on the market.

Go to combo #KN-40-540-1800-FUS

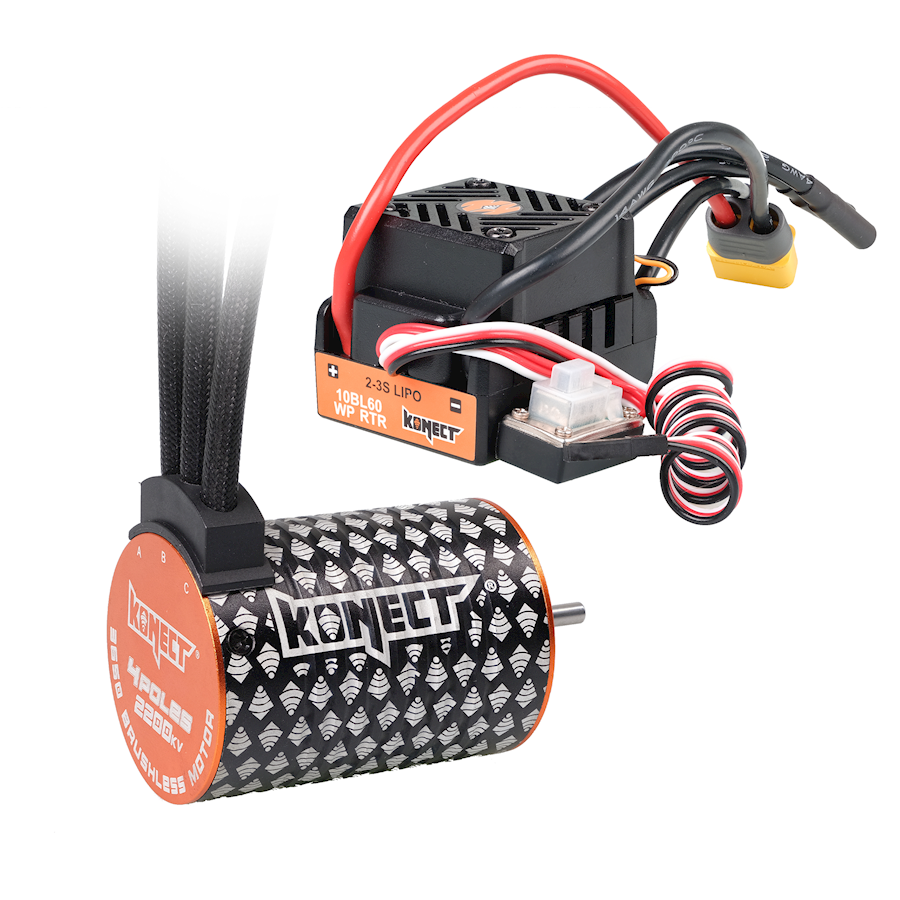

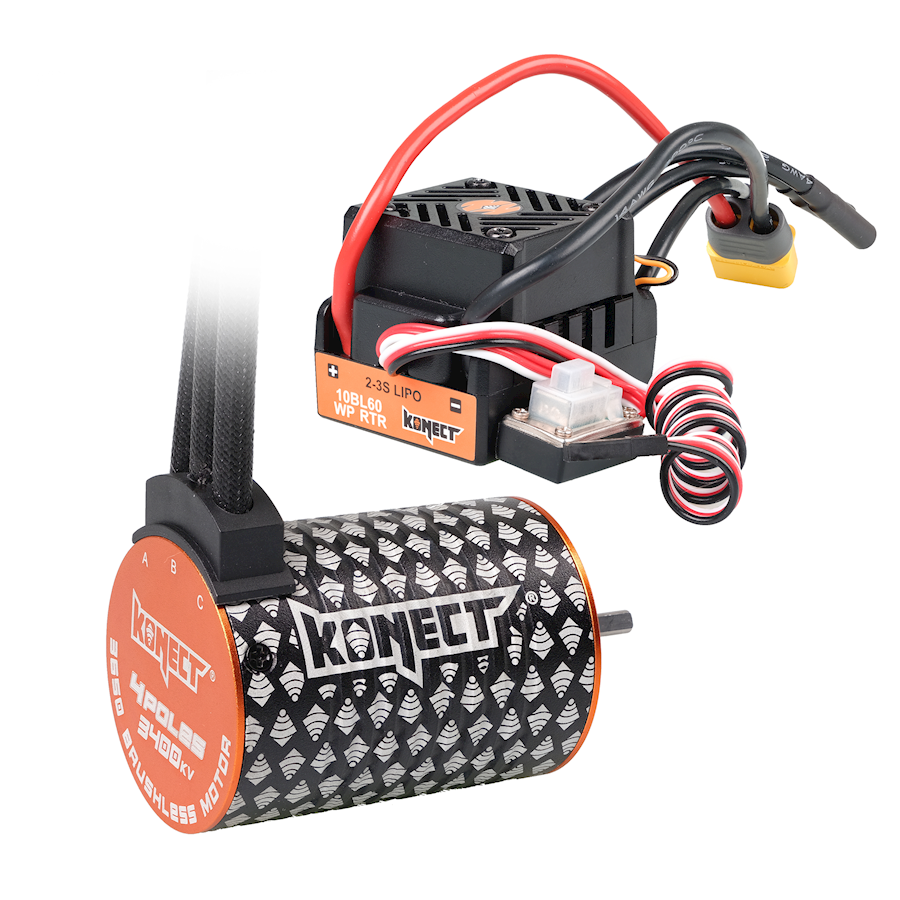

RANGE COMBOS B

This combo range is mainly dedicated to leisure. The 3652 size motors will fit in all 1 / 10th chassis and the 50A controller is manufactured by Hobbywing. These combos are resistant to splashing water and mud. Ccmbo’s come with motor + controller + programming card.

To upgrade a model that was equipped with a brushed motor, we will prefer the 3500 or even 4000 kv model. For a competition or brushless compatible model, you can choose the 4600 or 5400 kv model.

Features of the Konect 50A WP controller

• Compatible with sensorless motor.

• Power 50A continuously.

• Power 300A peak.

• Resistance 0.0008 ohm

• Input voltage (Nimh) : 4 to 9 cell

• Input Voltage (Lipo) : 2 to 3S Lipo (from 7.4 to 11.1v)

• BEC 6v 3A.

• Size : 48.5mm (L) x 38mm (W) x 32mm (H) mm with fan

• Weight 90g

The Konect programming card settings

• The operating mode: forward + brake – forward + reverse + brake

• The drag brake: from 0 to 40%

• The cut-off voltage: from 2.8V to 3.4V per cell or no protection

• The punch at startup: Level 1 to 4

• Braking force: 25, 50, 75 or 100%

KN-COMBO-B1
COMBO BRUSHLESS 50Amp WP + 4P 3652SL 3500Kv motor + program card
KN-COMBO-B2
COMBO BRUSHLESS 50Amp WP + 4P 3652SL 4000Kv motor + program card
KN-COMBO-B3
COMBO BRUSHLESS 50Amp WP + 4P 3652SL 4600Kv motor + program card
KN-COMBO-B4
COMBO BRUSHLESS 50Amp WP + 4P 3652SL 5400Kv motor + program card

RANGE COMBOS C

This combo range is mainly dedicated to leisure. 3660 size engines with 5mm axle fit in all 1 / 10th XL or 4×4 short course vehicles. The 80A controller is manufactured by Hobbywing. These combos are resistant to splashing water and mud. The combo comes with motor + controller + programming card.

These combos are available with 2750, 3150 and 3700 kv motors

Features of the Konect 80A WP controller

• Compatible with sensorless motor.

• Power 80A continuously.

• Power 520A peak.

• Resistance 0.0008 ohm

• Input voltage (Nimh) : 4 to 9 cell

• Input Voltage (Lipo) : 2 to 3S Lipo (from 7.4 to 11.1v)

• BEC 6v or 7.4V 3A.

• Size : 49 mm(L) x 39,5 mm(l) x 34,7 mm(H)mm with fan

• Weight 105 g

The Konect programming card settings

• The operating mode: forward + brake – forward + reverse + brake

• The drag brake: from 0 to 40%

• The cut-off voltage: from 2.8V to 3.4V per cell or no protection

• The punch at startup: Level 1 to 4

• Braking force: 25, 50, 75 or 100%

KN-COMBO-C1
COMBO BRUSHLESS 80Amp SCT WP + 4P 3660SL 2750Kv motor + program card
KN-COMBO-C2
COMBO BRUSHLESS 80Amp SCT WP + 4P 3660SL 3150Kv motor + program card
KN-COMBO-C3
COMBO BRUSHLESS 80Amp SCT WP + 4P 3660SL 3700Kv motor + program card

RANGE COMBOS L

This combo range is mainly dedicated to leisure. Engines size 4268 or 4274 with a 5mm axle will fit in all 1 / 8th or vehicles wich weight is between 3 and 4Kg. The 100A controller is manufactured by Hobbywing. These combos are resistant to splashing water and mud. The combo comes with motor + controller + programming card.

These combos are available with the following engine:

– 1900 kv size 4268
– 2000 kv size 4274
– 2200 kv size 4274

Features of the Konect 100A WP controller

• Compatible with sensorless motor.

• Power 100A continuously.

• Power 650A peak.

• Resistance 0.0008 ohm

• Input voltage (Nimh) : 4 to 12 cell

• Input Voltage (Lipo) : 2 to 4S Lipo (from 7.4 to 11.1v)

• BEC 6v 3A.

• Size : 59.5 mm(L) x 48 mm(l) x 42 mm(H) with fan

• Weight 173 g

The Konect programming card settings
• The operating mode: forward + brake – forward + reverse + brake

• The drag brake: from 0 to 40%

• The cut-off voltage: from 2.8V to 3.4V per cell or no protection

• The punch at startup: Level 1 to 4

• Braking force: 25, 50, 75 or 100%

KN-COMBO-L1
COMBO BRUSHLESS 1/8 100Amp WP + Motor 4P. 4268 1900KV+prog card
KN-COMBO-L2
COMBO BRUSHLESS 1/8 100Amp WP + Motor 4P. 4274 2000KV+prog card
KN-COMBO-L3
COMBO BRUSHLESS 1/8 100Amp WP + Motor 4P. 4274 2200KV+prog card

RANGE COMBOS M

This combo range is mainly dedicated to the initiation to competition. Engines size 4268 or 4274 with a 5mm axle will fit all 1 / 8th or weighing vehicles between 3 and 4Kg. The 150A controller is manufactured by Hobbywing. These combos are resistant to splashing water and mud. The combo comes with motor + controller + programming card.

These combos are available with the following engines:

– 1900 kv size 4268
– 2000 kv size 4274
– 2200 kv size 4274

Features of the Konect 150A WP controller

• Compatible with sensorless motor.

• Power 150A continuously.

• Power 950 peak.

• Resistance 0.0008 ohm

• Input voltage (Nimh) : 9 to 18 cell

• Input Voltage (Lipo) : 3 to 6S Lipo (from 7.4 to 11.1v)

• BEC 6v 3A.

• Size : 59.5 mm(L) x 48 mm(l) x 42 mm(H) with fan

• Weight 178 g

The Konect programming card settings
• The operating mode: forward + brake – forward + reverse + brake

• The drag brake: from 0 to 40%

• The cut-off voltage: from 2.8V to 3.4V per cell or no protection

• The punch at startup: Level 1 to 4

• Braking force: 25, 50, 75 or 100%

KN-COMBO-M7
COMBO BRUSHLESS 1/8 150Amp WP + Motor 4P. 4268 1900KV+prog card
KN-COMBO-M8
COMBO BRUSHLESS 1/8 150Amp WP + Motor 4P. 4274 2000KV+prog card
KN-COMBO-M9
COMBO BRUSHLESS 1/8 150Amp WP + Motor 4P. 4274 2200KV+prog card
